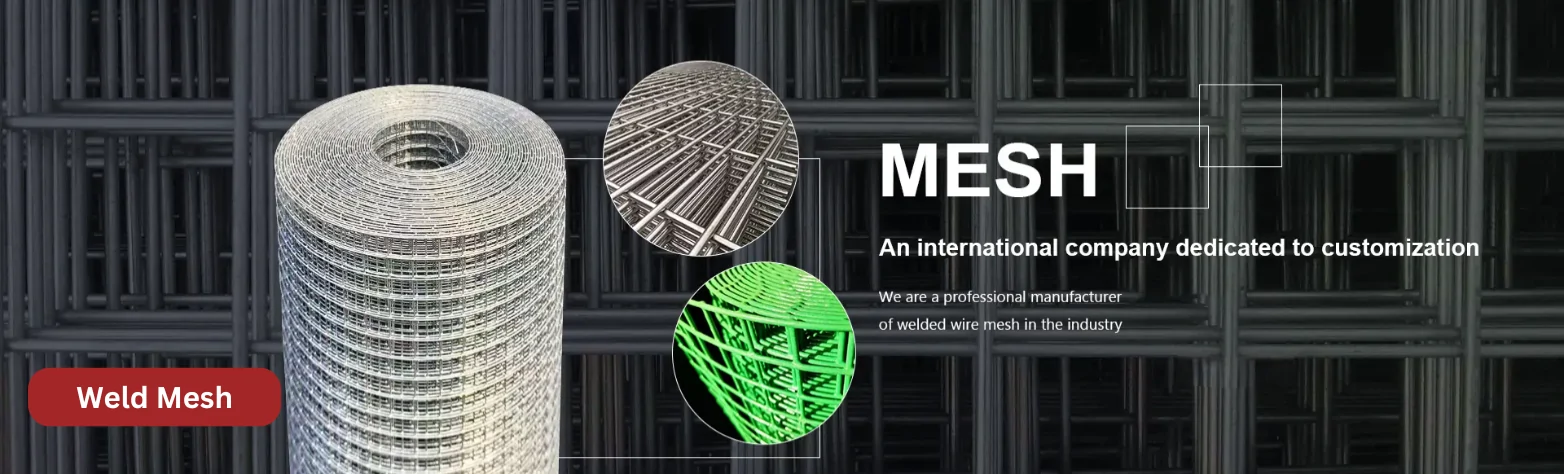

Weld Mesh is fencing made by electronically welding together longitudinal and parallel wires, with cross wires spaced according to customer specifications. Our company produces this welded mesh in rectangular or square mesh using GI (Galvanized Iron) wire. Our Weld Wire Mesh rolls come in a range of thicknesses from 2mm to 3mm, and mesh sizes will be 1X1, 1¼ X 1¼, and 3X1 inches. We utilize automatic machinery to ensure that our products are of the highest quality, providing our customers with a superior experience.
Benefits Of Weld Mesh:
Durability: The GI Weld Mesh is incredibly durable and can withstand exposure to the elements, making it an ideal choice for outdoor applications.
Strength: The welding process used to create the mesh results in a robust structure, making it an excellent barrier for security purposes.
Versatility: GI Welded Wire Mesh can be produced in a variety of sizes and shapes to suit different applications, from small-scale residential fencing to large industrial barriers.
Low Maintenance: GI Welded Wire Mesh requires little maintenance, making it a cost-effective solution for long-term fencing needs.
Easy installation: Welded Wire Mesh is easy to install, with rolls available in a variety of sizes that can be easily transported to the site and installed quickly.
Cost-effective: Welded Mesh Fencing is an affordable fencing option that offers excellent value for money compared to other types of fencing materials.
Visibility: The open design of weld mesh provides excellent visibility, making it an ideal choice for applications where visibility is important, such as in sports facilities or public spaces.
GET FREE ESTIMATES:
Our experts are here to help you !
Download Product Catalog

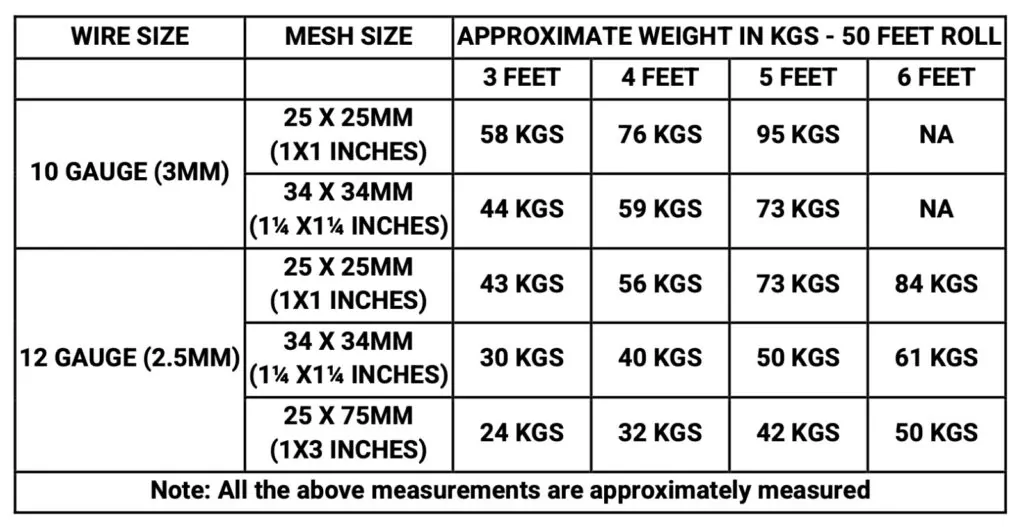

Specifications Of Welded Mesh
| Wire Size | Mesh Size | Approximate Weight in Kgs – 50 Ft Roll | |||
|---|---|---|---|---|---|
| 3 Ft | 4 Ft | 5 Ft | 6 Ft | ||
| 10 Gauge (3.00 mm) | 25 X 25 | 58 Kgs | 76 Kgs | 98 Kgs | NA |
| 10 Gauge (3.00 mm) | 34 X 34 | 44 Kgs | 59 Kgs | 73 Kgs | NA |
| 12 Gauge (2.50 mm) | 25 X 25 mm 1 X 1 Inches | 25 X 25 Inches | 25 X 25 Inches | ||
| 12 Gauge (2.50 mm) | 34 X 34 | 30 Kgs | 40 Kgs | 50 Kgs | 60 Kgs |
| 12 Gauge (2.50 mm) | 3 X 1 | 24 Kgs | 32 Kgs | 42 Kgs | 50 Kgs |
| Note: All the above measurements are approximately measured | |||||
Applications
Manufacturing Unit
Construction and Real Estate
Warehouse
Schools and Colleges
